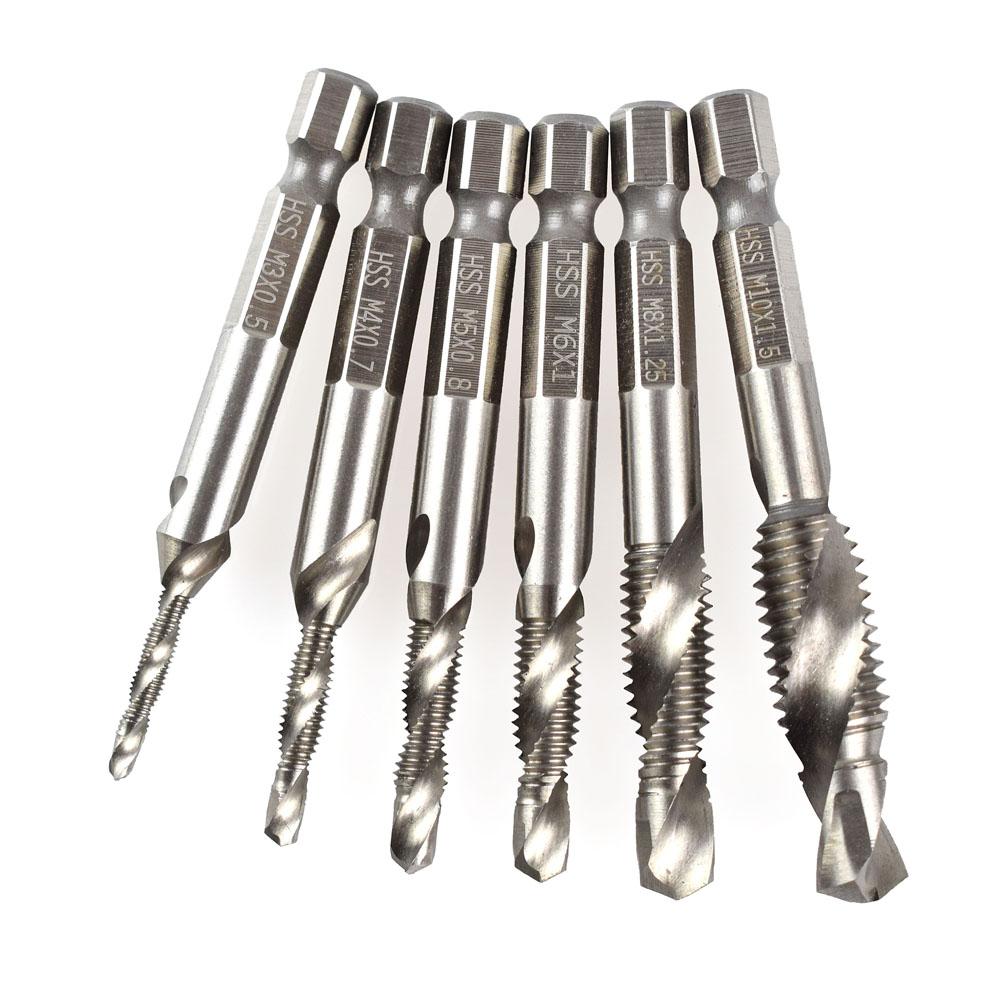

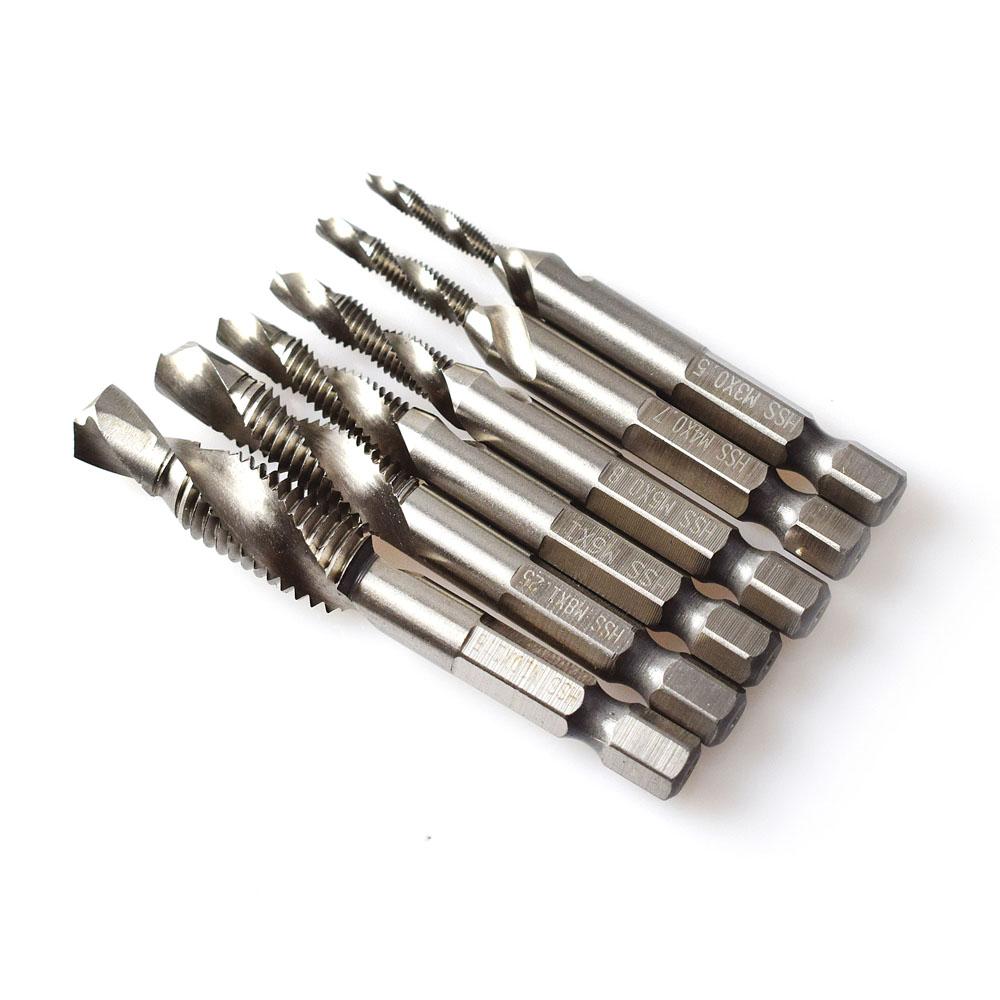

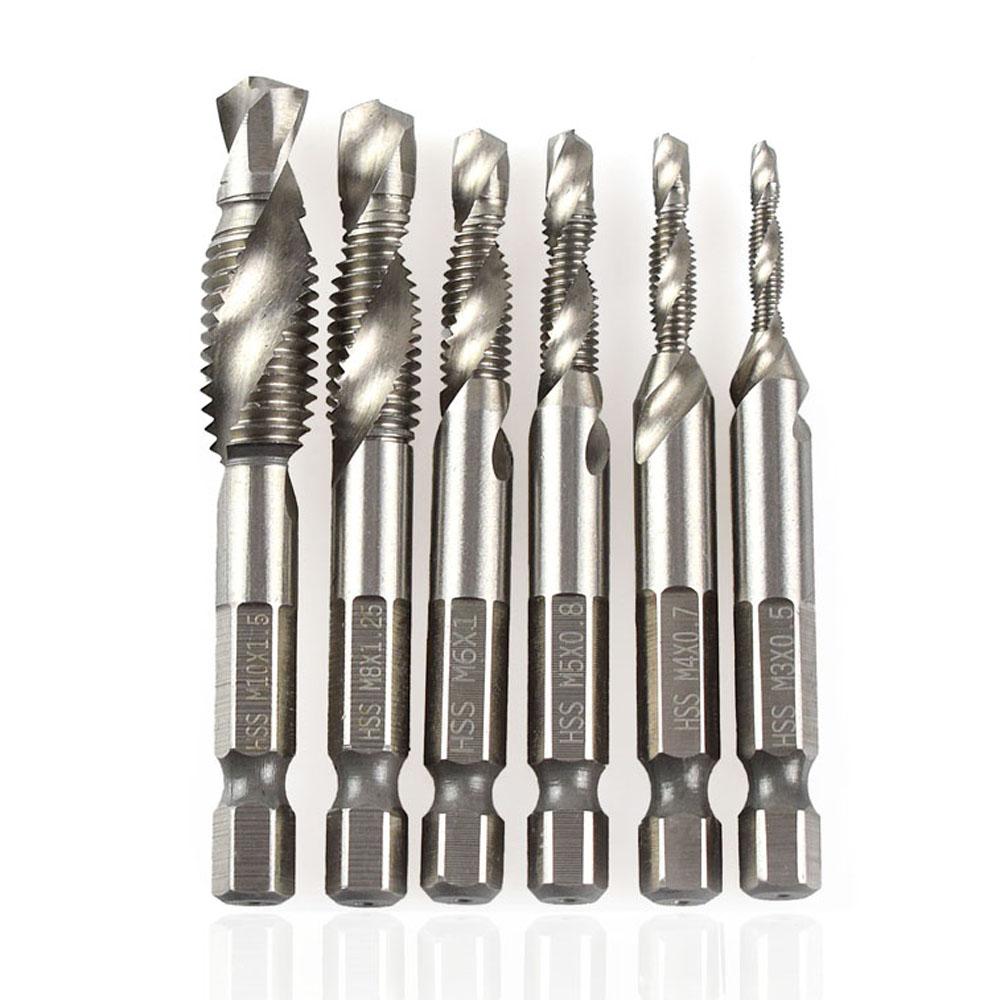

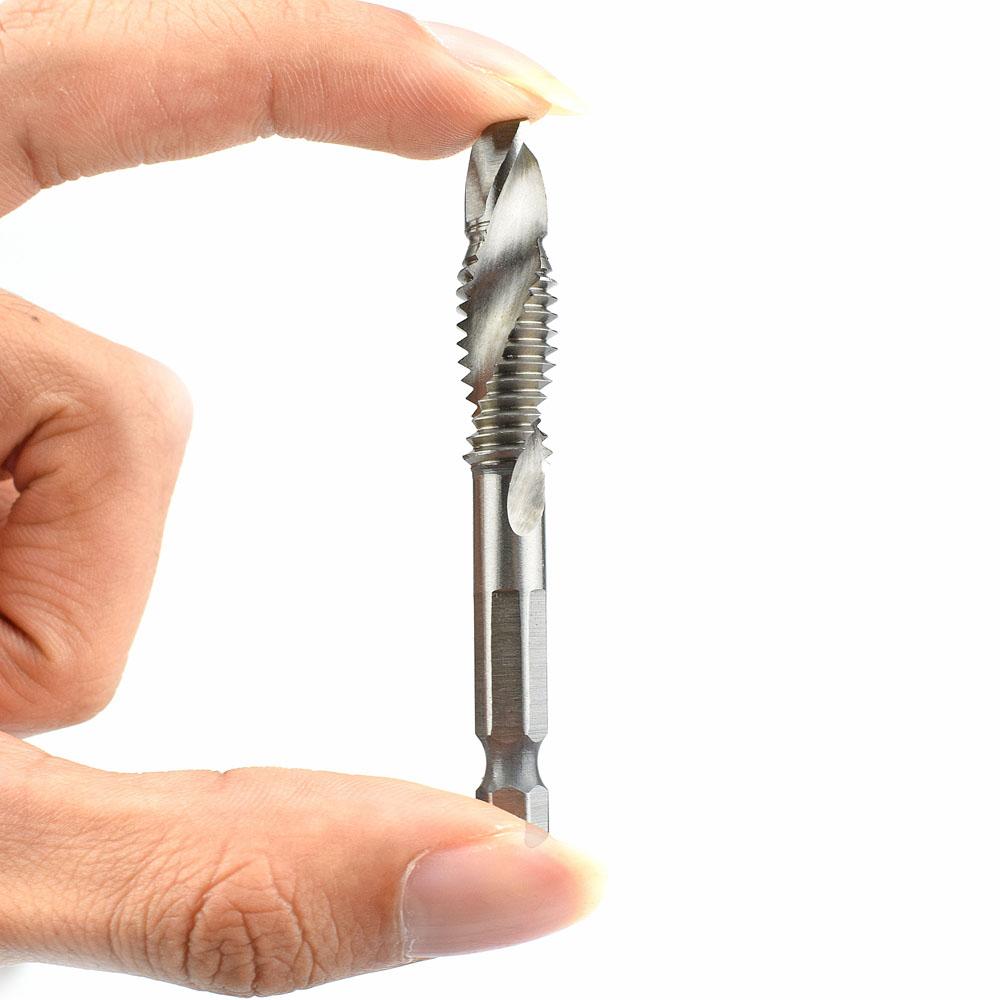

High-speed Steel Thread Spiral Screw

This High-speed Steel Thread Spiral Screw is ideal for auto repair and machinery where metric threads are specified. It is suitable for soft tapping metal, aluminum, iron, etc. The screws are multi-coated to remain bright and sharp. They come in various sizes, each fitted for repairing materials of different proportions.:

Color: Silver

- Materials: High-speed steel (HSS) - Shank Diameter: (6.35 mm) hex

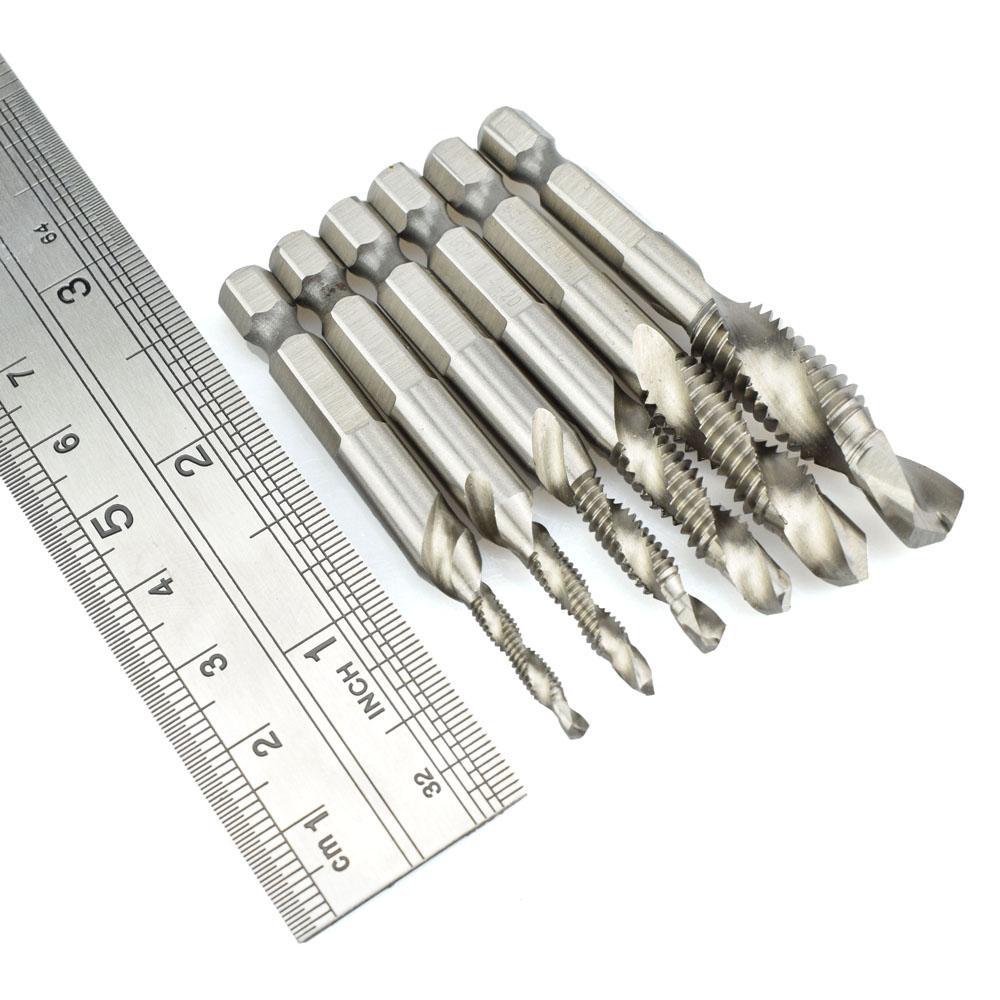

Sizes:

M3 x 0.5 (6-32NC) total length: 55 mm; Spiral length: 24 mm; drill diameter: 2.5 mm

M4 x 0.7 (8-32NC) total length: 54 mm; Spiral length: 24 mm; drill diameter: 3.3 mm

M5 x 0.8 (10-32NC) total length: 58 mm; Spiral length: 28 mm; drill diameter: 4.2 mm

M6 x 1.0 (10-24NC) total length: 58 mm; Spiral length: 28 mm; drill diameter: 5.0 mm

M8 x 1.25 (12-24NC) total length: 59 mm; Spiral length: 18 mm; drill diameter: 6.8 mm

M10 x 1.5 (1/4-20NC) total length: 59 mm; Spiral length: 20 mm; drill diameter: 8.5 mm

Package Inclusion:

1 x High-speed Steel Thread Spiral Screw (Set, 6pcs.)
